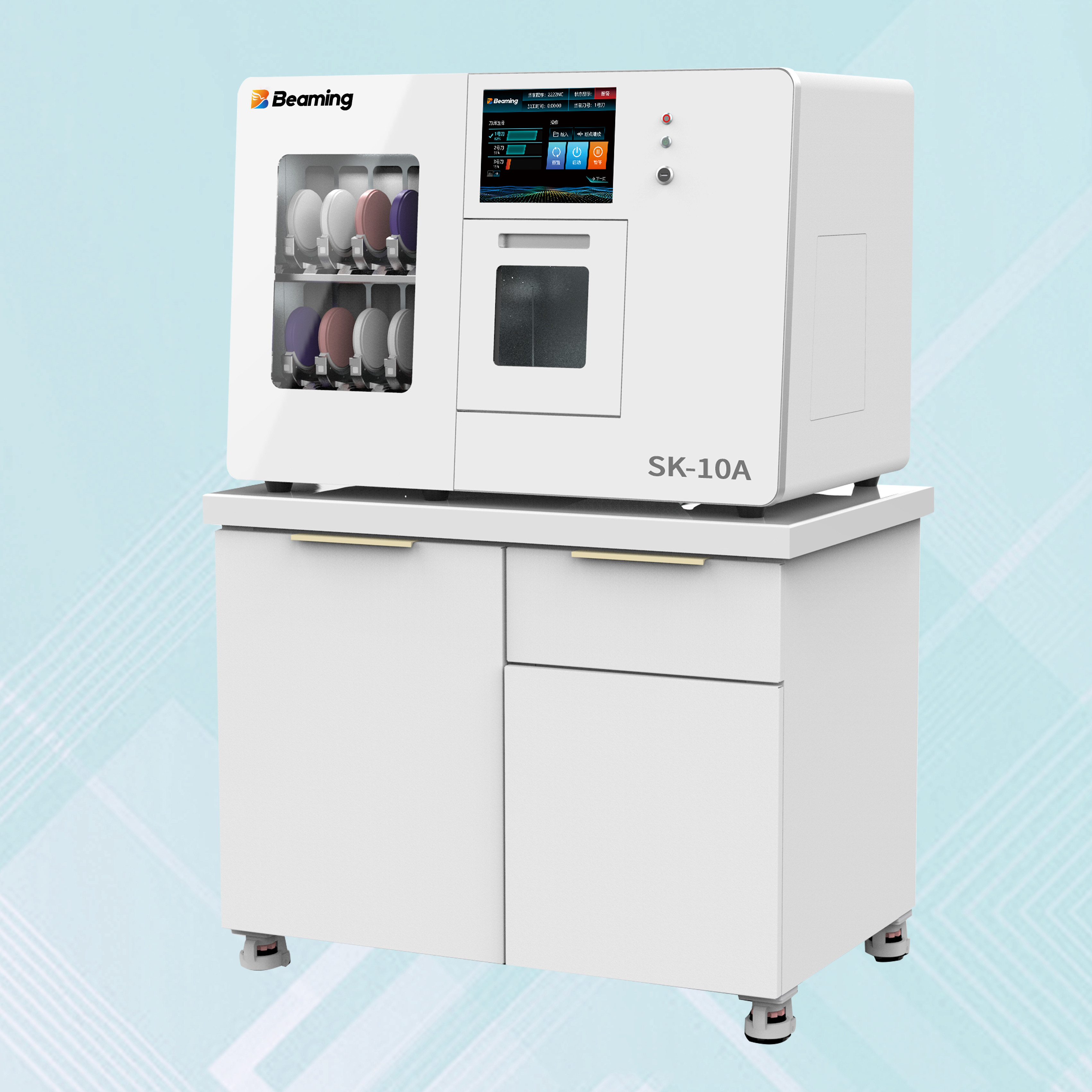

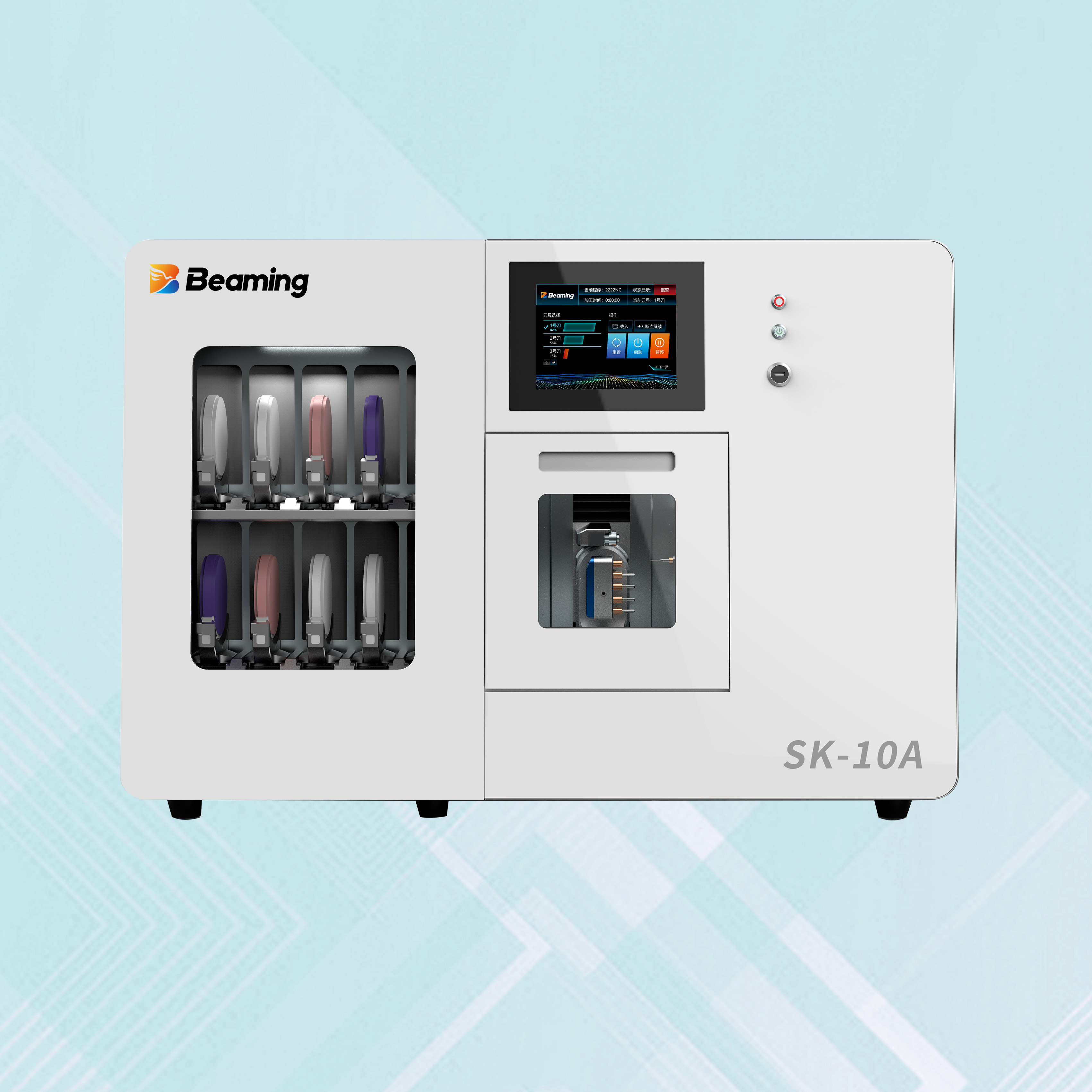

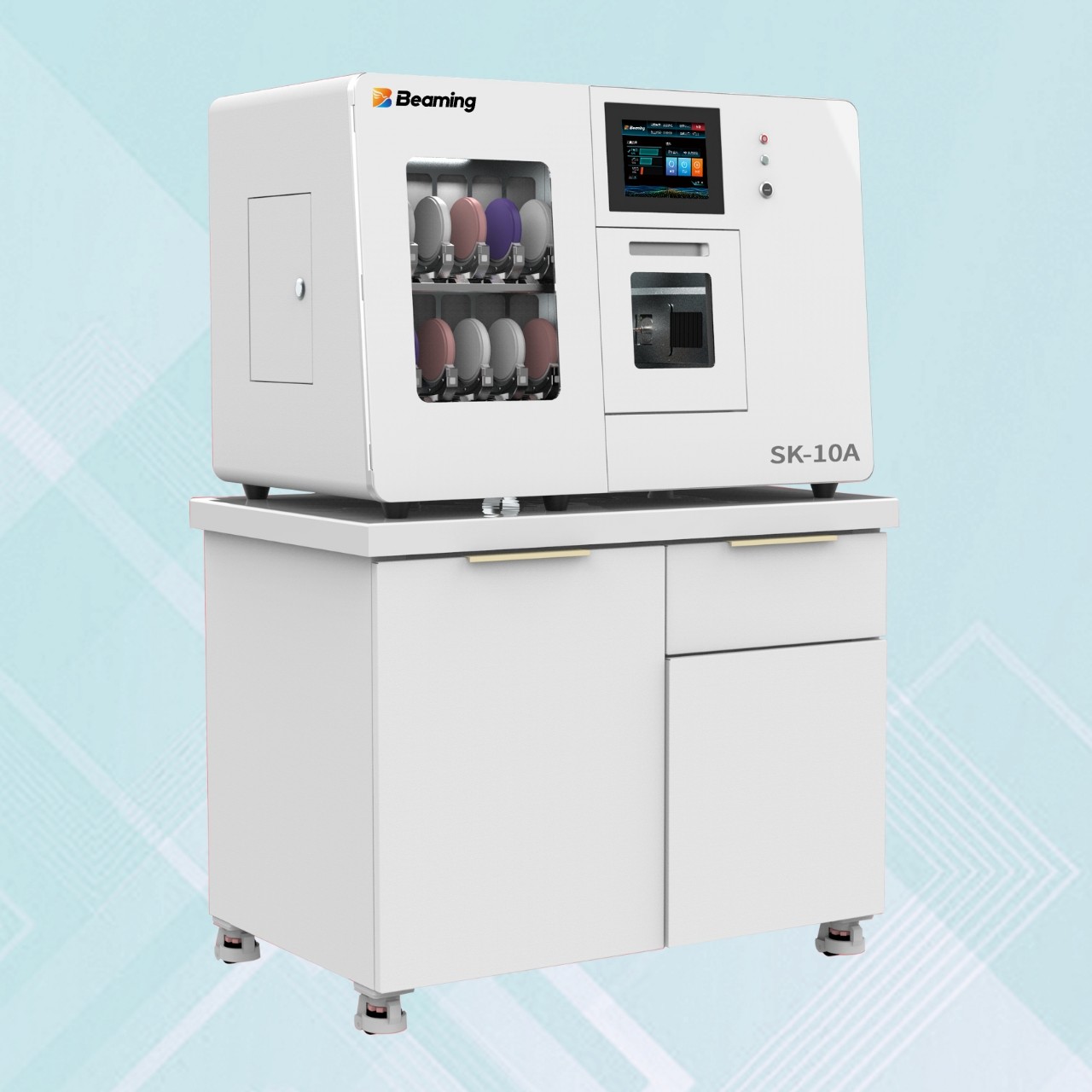

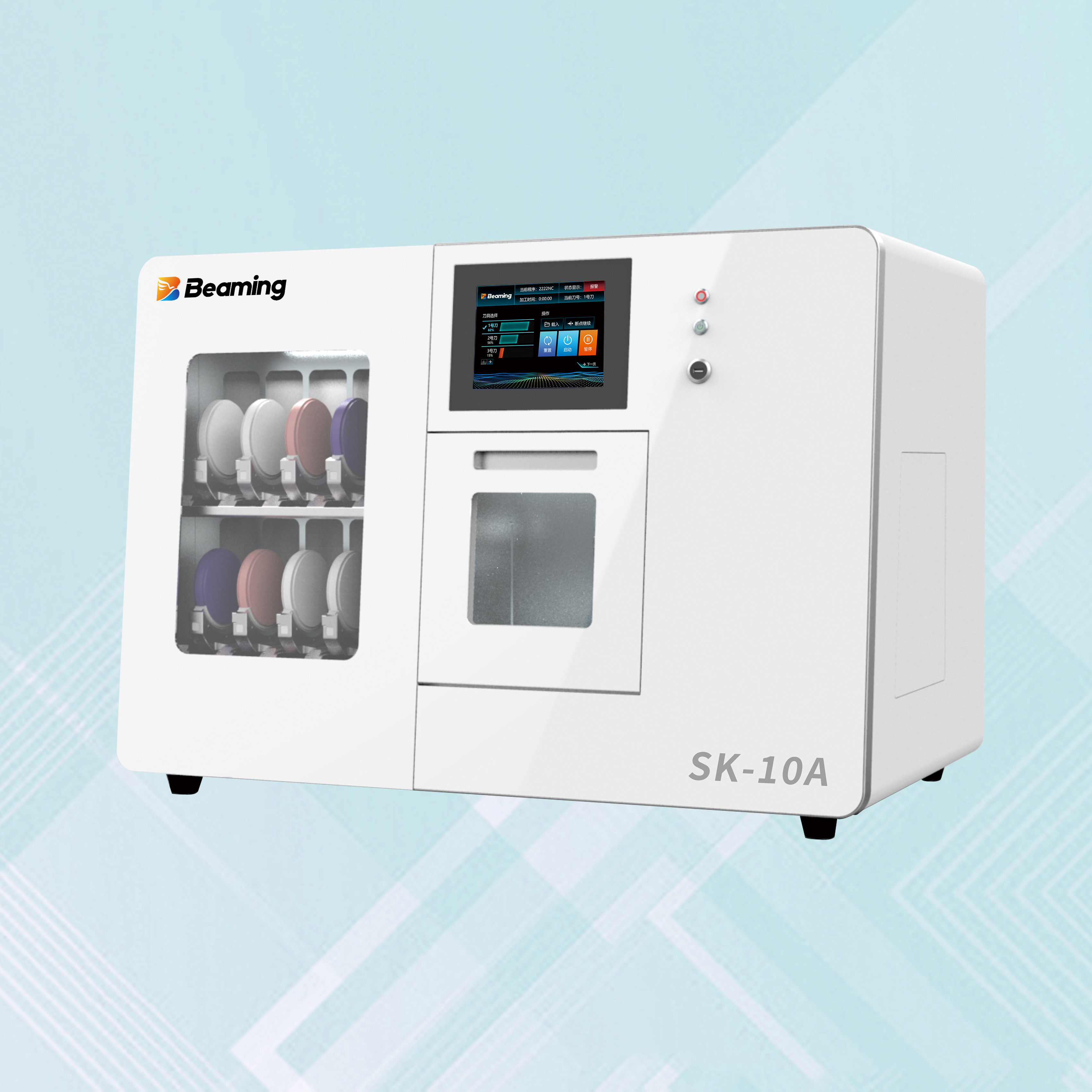

Dental Dry Milling Machine with 10-Disc Capacity

1. Product Introduction
The SK-10A Dental Milling Machine advances automated dental laboratory production with its integrated robotic system and precision engineering. Designed for high-volume workflows, it ensures consistent, unattended operation for diverse dental restorations.

2. Product Purpose
This machine automates the fabrication of critical dental components, including:

Crowns

Bridges(14 units)

Inlays,

veneer

It processes zirconia, wax, resin, and composite materials, supporting comprehensive laboratory production needs.

3. Product Features

Robotic Loading System: 10-disc cyclic loading for continuous operation.

High-Precision Engineering: ±0.01mm accuracy via closed-loop servo ball screws.

5-Axis Capability: Simultaneous A-axis (360°) and B-axis (±30°) motion for complex geometries.

Efficient Tooling: 5-bur quick-change system with Φ4mm tool diameter.

Material Optimization: 118° fixtures achieve material usage rates up to 98%.

Intelligent Recovery: Automated process restoration after interruptions.

Key Technical Parameters:

4. Product Advantages

Extended Autonomy: 24/7 unattended operation maximizes production uptime.

Operational Efficiency: Reduces per-unit costs significantly while boosting output volume.

Resource Optimization: Near-maximal material utilization (98%) lowers waste.

Process Reliability: Intelligent recovery minimizes downtime from interruptions.

Workflow Integration: Robotic loading and quick tool changes streamline high-volume production.

Remote Management: Cloud-based diagnostics enable proactive maintenance and support.

Versatile Fabrication: 5-axis capability ensures precision across diverse restoration types and materials.
