1KW Dental Zirconia Milling Machine Plusmn 0.02mm Accuracy Dental Crown Milling

1000W Full-Servo Dental Milling Machine Achieve plusmn 0.02mm Dimensional Accuracy for Restorations

• 1. Product Introduction

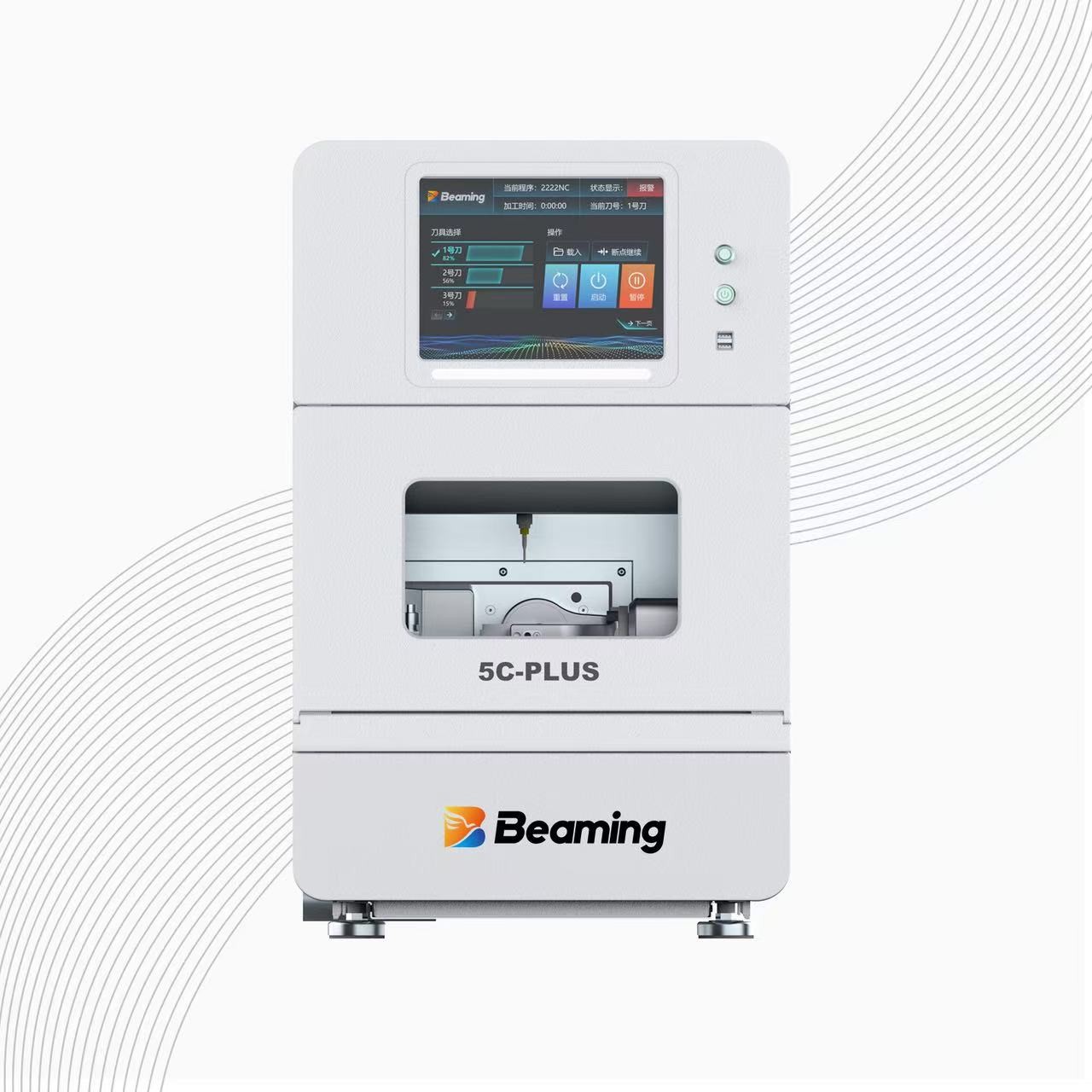

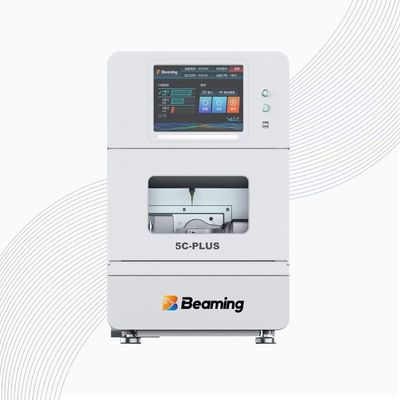

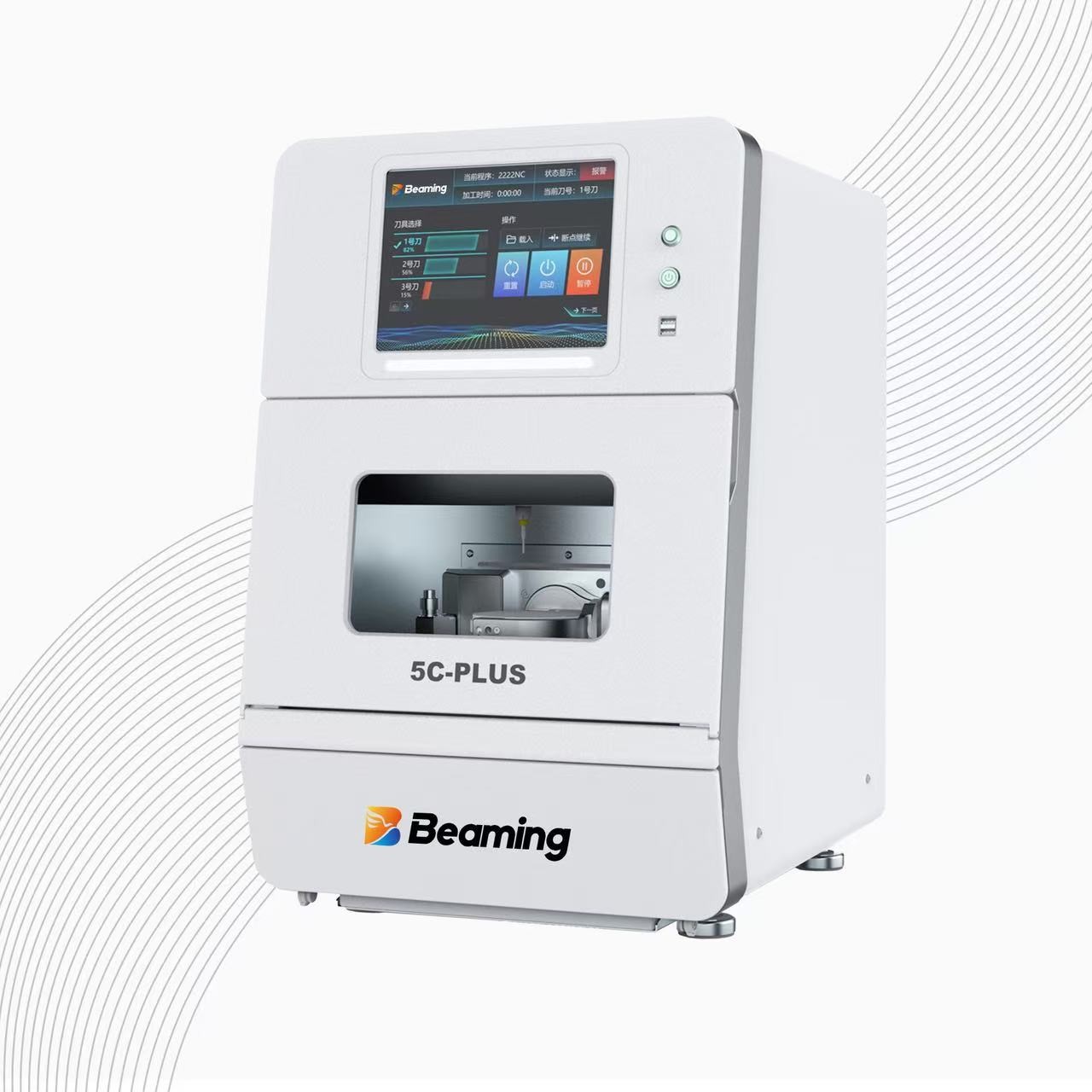

  The SK Dental Milling Machine 5C Plus redefines dental prosthesis manufacturing through synchronized 5-axis motion technology. Integrating a 60,000 RPM motorized spindle and 10-cutter automated storage, this system fluidly alternates between coolant-assisted and dry milling operations. Engineered to process zirconia, glass ceramics, PMMA, wax, and titanium abutments, its consolidated footprint incorporates continuous optical surveillance and a retractable tool repository. Intuitive workflow design establishes this solution as fundamental for academic institutions, clinical settings, and laboratory environments demanding comprehensive restorative fabrication capabilities.

•

  2. Applications
  Specialized in crafting high-fidelity dental prostheses, this unit generates:

  • Reconstructive Components: Complete/partial crowns, bridge frameworks

  • Implant Integration: Patient-specific abutments

  • Conservative Restorations: Veneer laminates, precision inlays
    Material Spectrum: Compatible with zirconia, glass ceramics, PMMA, wax, and machinable titanium implant interfaces.
    Operational Settings: Educational facilities, clinical operators, and laboratory technicians requiring integrated precision milling for diverse prosthetic applications.



  ---

  3.Technical Specifications

  Category	Parameter
  Mechanical
  Processing Mode	5-axis simultaneous machining
  Rotation Range	A-axis: ±360° B-axis: ±25°
  Spindle Speed	0–60,000 RPM
  Tool Capacity	10-bur automatic magazine
  Precision
  Milling Accuracy	±0.02mm
  Power
  Total Consumption	1,000W
  Compatibility
  Processing Methods	Wet & Dry dual-mode
  Machinable Materials	Zirconia, Glass Ceramics, PMMA, Wax, Pre-milled Titanium Abutments
  Drive System	Full digital servo control

  Note: Features hidden tool magazine with intelligent auto-change functionality and real-time camera monitoring.

4. Product Features

• 5-Axis Machining: Processes intricate designs effortlessly.

• High-Speed Spindle: 0–60,000 RPM for efficient material processing.

• Smart Tool Management: Stores 10 burs in a hidden magazine with automatic tool changing.

• Dual Processing Modes: Supports both wet (coolant-compatible) and dry milling.
