Beaming SK-5Bdental milling machine spindle speeds 24 burs tool capacity

1. Product Introduction

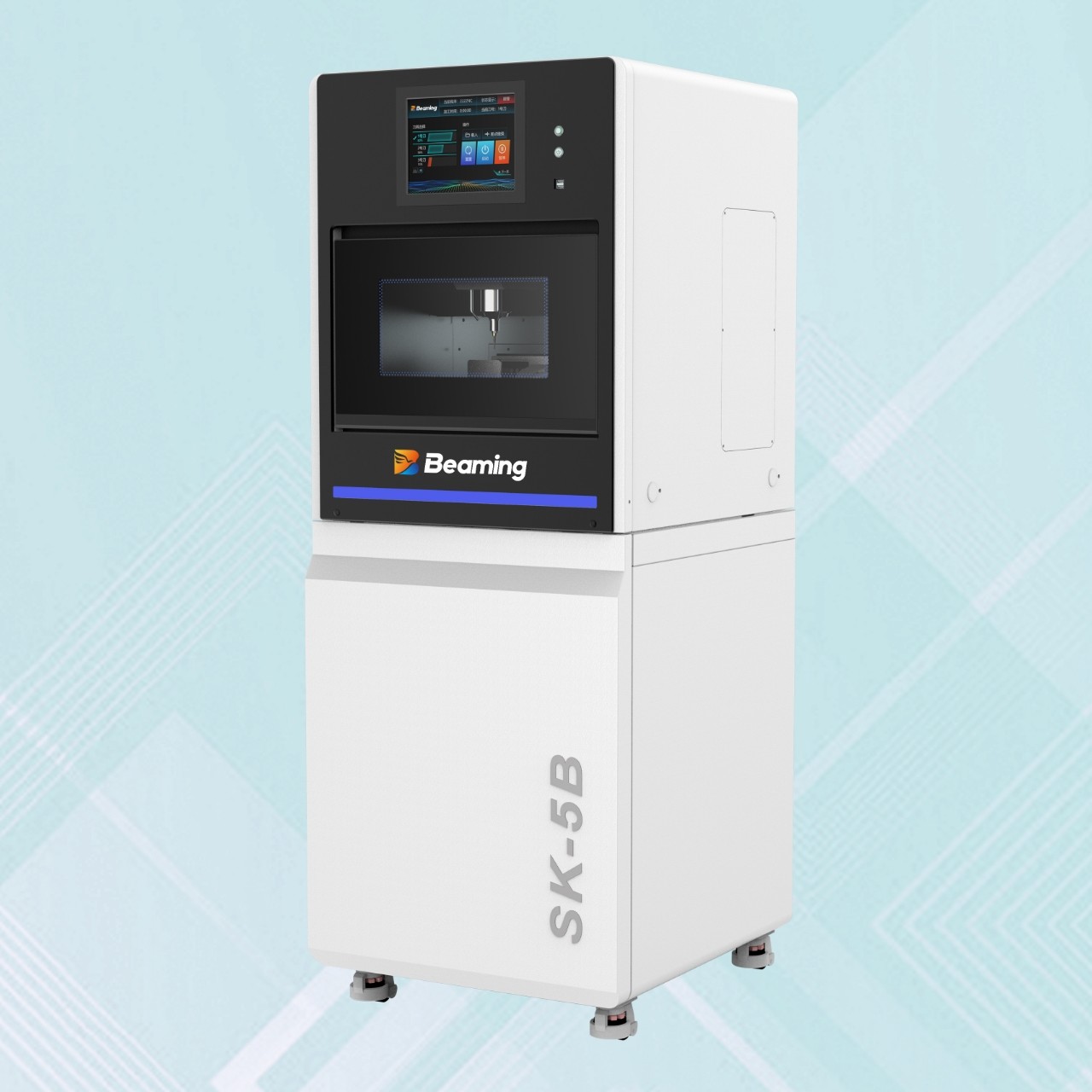

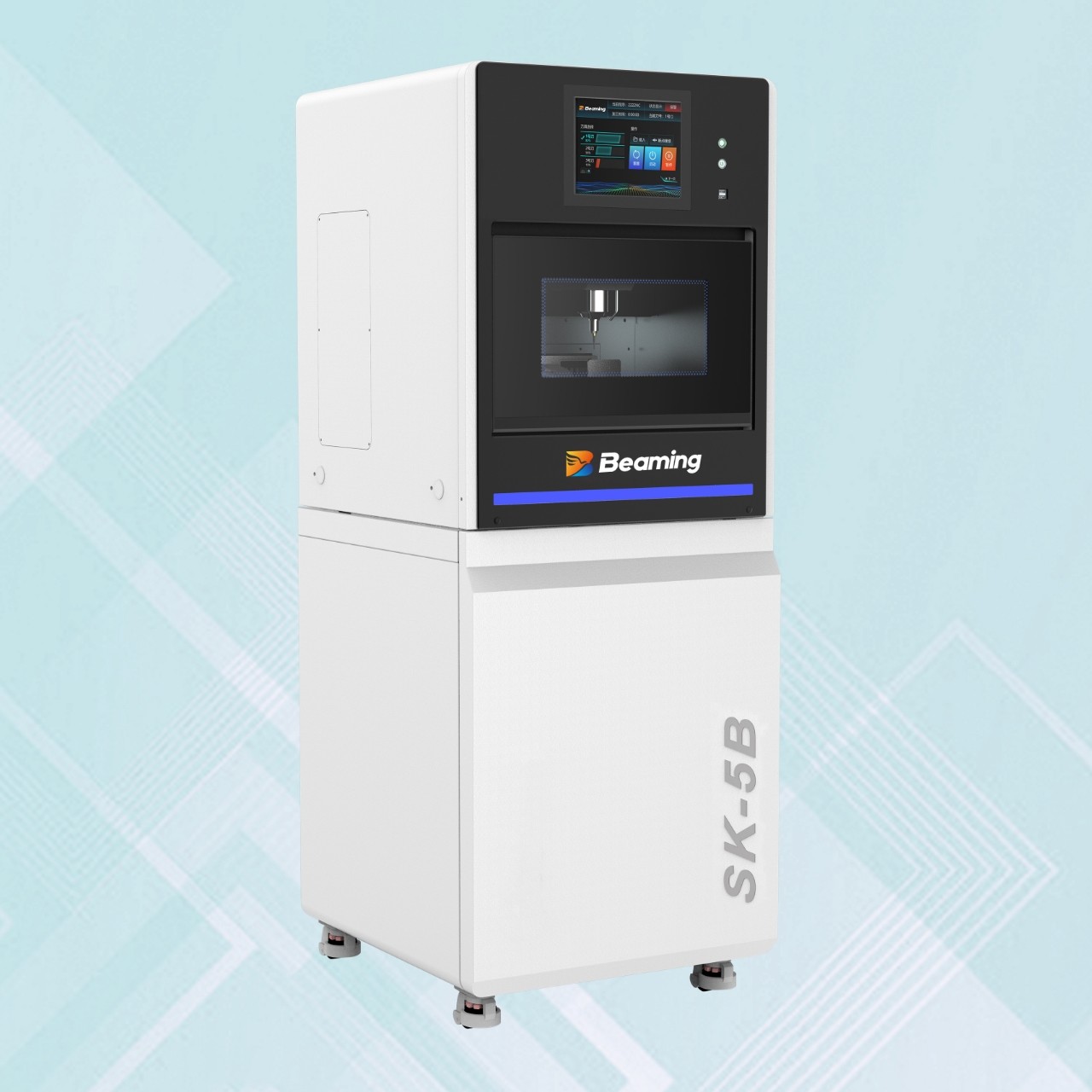

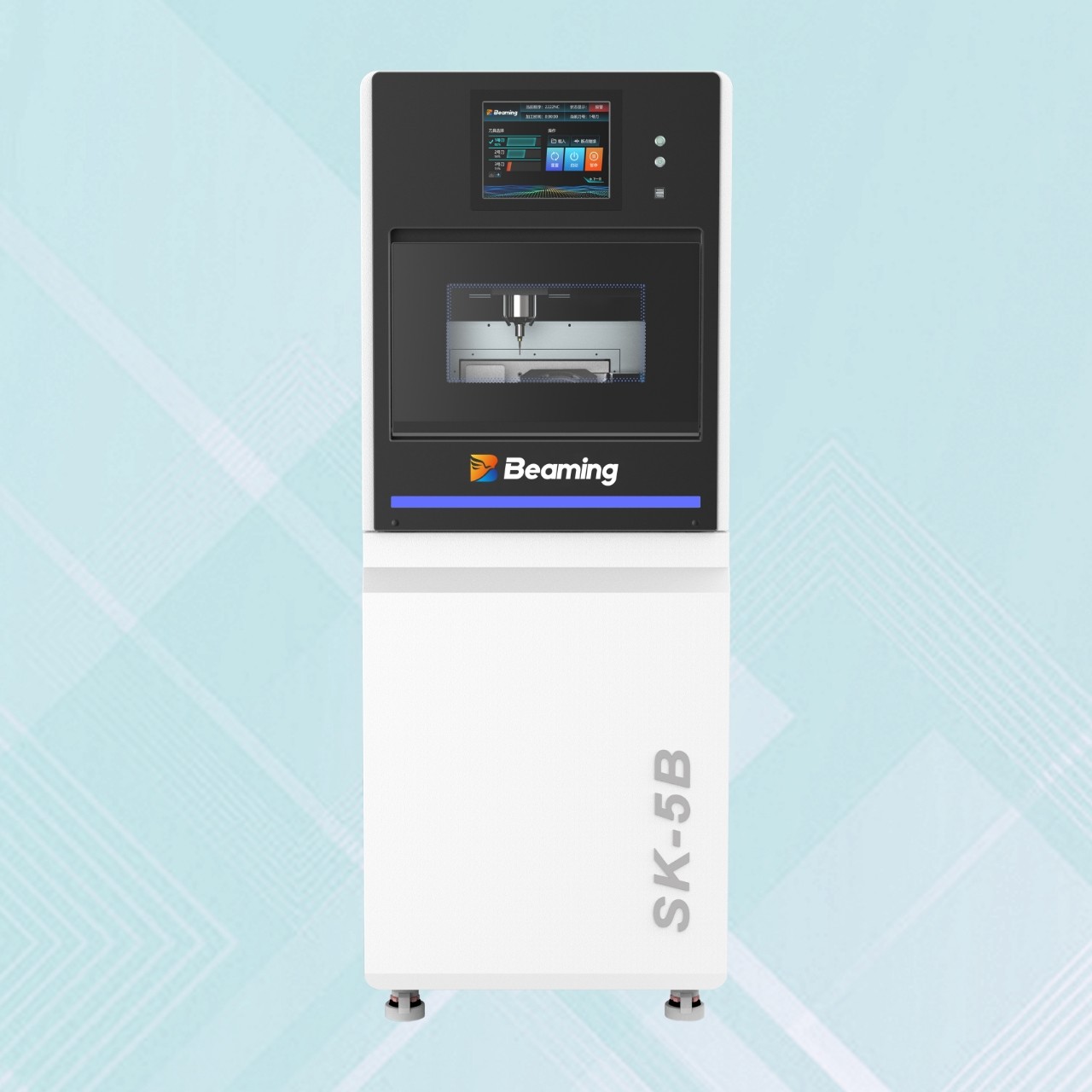

The SK-5B Dental Milling Machine is an industrial 5-axis wet processing system designed for precision dental restoration fabrication. Featuring a mineral-cast frame and 4,500W servo drive system, it operates at 0–60,000 RPM to process titanium blanks, ceramic blocks, and prefabricated abutments. With ±360° A-axis rotation, ±30° B-axis tilt, and 24-position automatic tool changing, it delivers consistent 0.02mm dimensional accuracy suitable for laboratory and clinical environments.

2. Intended Applications
This system supports key dental restoration workflows:

• Fixed Prosthetics: Crowns, veneers, inlays, partial/full-coverage restorations

• Implant Components: Custom abutments, screw-retained bridges, scan bodies

• Metal Frameworks: Angled multi-unit infrastructures

• Educational Models: Dental training specimen production

3. Operational Advantages

• Extended Tool Management: 24-cutter automatic changer reduces manual intervention during multi-material workflows

• Enhanced Angular Range: ±30° B-axis tilt with continuous A-axis rotation enables complex geometry processing

• Material Processing Efficiency: 60,000 RPM spindle capability supports modern ceramic and metal milling requirements

• Precision Drive System: Servo-controlled motion maintains 0.02mm tolerances under varied cutting loads

• Proactive Maintenance: Remote diagnostics facilitate timely technical support

4. Technical Characteristics

Key Integration Notes
The system combines industrial-grade construction with clinical workflow efficiency. Simultaneous 5-axis capability addresses undercuts in complex restorations like multi-unit bridges, while the compact coolant-integrated design optimizes workspace utilization. Remote monitoring capabilities contribute to operational continuity in dental laboratories and clinics.
